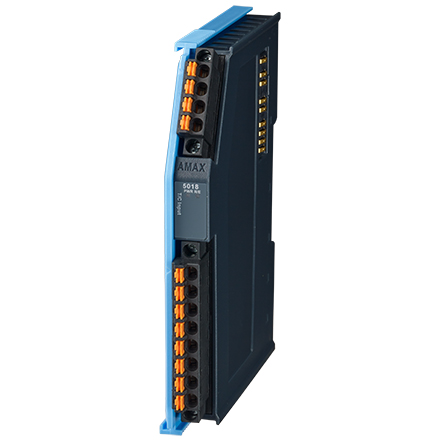

AMAX-5018

AMAX-5018

AMAX-5018

6-ch Thermocouple Input EtherCAT Slice IO Module

  • Channels: 6 differential
  • Input Type: V, mV, Thermocouple
  • Input Impedance: >2MΩ
  • Voltage Range: ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
  • Resolution: 16-bit
  • FSR accuracy: 16-bit with ±0.1% @25°C
  • Sample Rage: 100 Sample/Second (per channel)

Contact us for quotation

Categories: , Brand:

Description

Thermocouple Input
Channels
  • 6
Temperature Range
  • Type J (0~760° C), Type K (0~1370° C), Type T (-100~400° C), Type E (0~1000° C), Type R (500~1750° C), Type S (500~1750° C), Type B (500~1800° C), Type N (-200~1300° C)
Voltage Range
  • ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
Sample Range
  • 100 S/s (per channel)
Input Impedance
  • > 2 MΩ
Analog Input
Resolution(Bits)
  • 16-bit with ±0.1% FSR accuracy @25°C
General
Connectors
  • 1 x 4-pin plug-in screw terminal, 1 x 8-pin plug-in screw terminal
Protocol
  • EtherCAT
EtherCAT
Cycle Time
  • 100 μs
Hardware
Certification
  • CE, FCC class A
LED Indicators
  • PWR, RUN / ERROR
Power Consumption
  • 2 W@ 24 VDC
Environment
Isolation Voltage
  • 2,000 VDC
Operating Temperature
  • -25~60 °C (-13~140 °F)
Relative Humidity
  • 95% RH (non-condensing)
Storage Temperature
  • -40~85 °C (-40~185 °F)
Storage Humidity
  • 95% RH (non-condensing)
Mechanical
Enclosure
  • PC
Mounting
  • DIN-rail
Weight (Net)
  • 87 g
Dimension (W x H x D)
  • 14.6 x 105.9 x 94.7 mm
